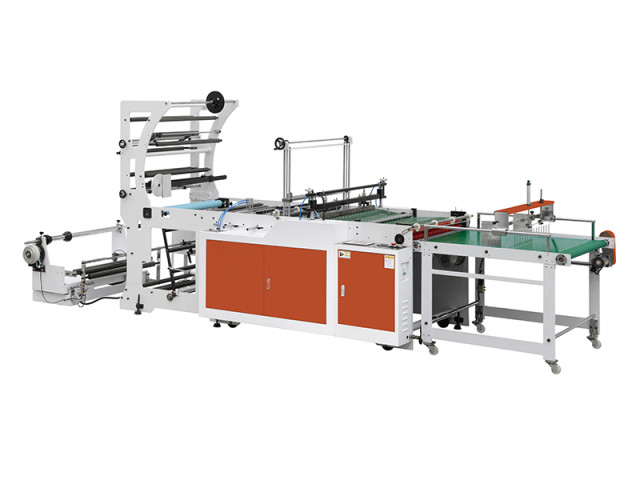

RQD-高速边封机

   性能特点

1.本机适应于生产PE、PP、OPP、PVC等材料边封袋

2.采用日本伺服马达控制，主电机采用台湾变频调速，意大利光电眼跟踪彩印，出袋输送装置采用进口皮带及台湾变频调速。

3.切刀采用优质合金钢.高温加热不易变形。封辊采用耐高温硅胶材料。

4.放料架配置E.P.C 自动纠偏、磁粉制动张力控制。

5.配套功能：1）圆形透气孔 2）双面胶装置 3）PE筒膜破边装置

1.This machine specialize to make PE、PP、OPP、PVC etc.side sealing bag.

2. Use servo motor feeding control, Main motor use Taiwan invertor control.

Conveying device use high quality conveyer belt & Taiwan invertor control

3.Heat sealing knife use High quality alloy steel.Heated to high temperatures

not easy deaformation.Sealing bar use thermostability silica gel material

4.It has E.P.C automatic control for unwinding.

5. Supporting function:1) Circular holes 2)Adhesive tape device 3)PE tube film Broken edge device

规格

Specification

型号 Model

RQD-400

RQD-600

RQD-700

RQD-800

RQD-1000

制袋宽度Max.Bag Width

400mm

600mm

700mm

800mm

1000mm

制袋长度Max Bag Length

30-600mm

55-600mm

55-700mm

60-700mm

65-800mm

制袋速度Machine speed

30-180pcs/min

30-140pcs/min

30-140pcs/min

30-130pcs/min

30-130pcs/min

制袋厚度thickness of film

0.02-0.20mm

0.02-0.20mm

0.02-0.20mm

0.02-0.20mm

0.02-0.20mm

制袋误差Tolerance

±1mm

±1mm

±1mm

±1mm

±1mm

整机功率Power Required

3.0KW

3.2KW

3.4KW

3.6KW

3.8KW

设备尺寸Machine size

3100*1000*1420mm

3100*1250*1420mm

3100*1350*1420mm

3100*1450*1420mm

3100*1650*1420mm

机器重量Machine N.W

750kg

950kg

1050kg

1150kg

1250kg
