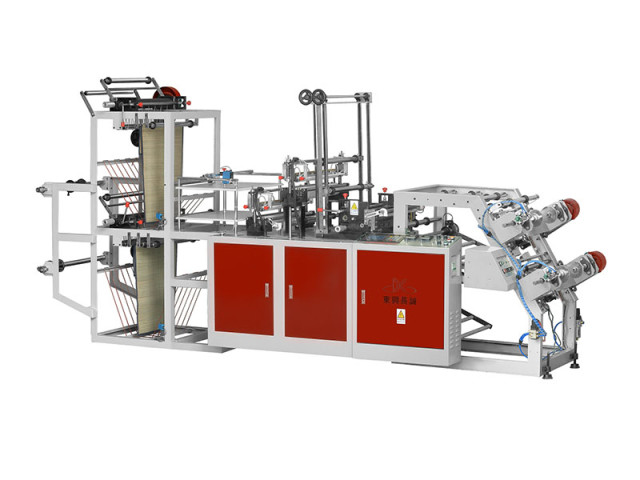

FQ+R-500自动双层点断连卷制袋机

   性能特点

1.本机适合用于生产点断连卷垃圾袋、保鲜袋等..
2.采用日本伺服马达控制，台湾变频调速，意大利光电眼跟踪彩印。
3.配置纸芯和无纸芯装置。
4. .移开收卷装置，更换平切刀可生产平口袋及背心袋。一机多用.

1.This machine specialize to make gerbage and freezer bag.
2.Use Japan servo motors feeding control, Main motor and feeding motor use Taiwan invertor control. Italy photocells tracking.
3.Bag on roll with core and coreless device.
4. Remove the rewinding device，change to cutting blade and making bottom sealing bag and T-shirt bag.Multi-function in one machine.

规格

Specification

Model

FQ+R-500

制袋宽度Max.Bag Width

500mm

制袋长度Max Bag Length

10∼2000mm

制袋速度Machine speed

30~150pcs/min

制袋厚度thickness of film

0.008~0.04mm

制袋误差Tolerance

±1mm

整机功率Power Required

3.2kw

设备尺寸Machine size

2800×1000×1420mm

机器重量Machine N.W

850kg
