BXZD-双伺服全自动高速背心袋制袋机 |
|

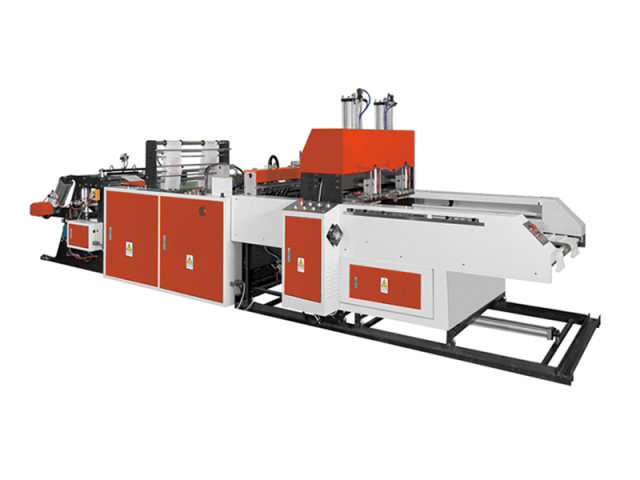

BXZD-Automatic High Speed T-shirt Bag Making Machine |
|
性能特点 |
Features |
|
1.采用双日本伺服马达控制，台湾变频调速，双意大利光电眼跟踪彩印 2.AC电机张力控制放料架，带刹车配合送料，放料架可放直径800mm,自动上料装置，气动控制，配置气胀轴。 3.吹气式出料系统，自动冲床采用油压推动油压控制，废料集中,输送收集，易于整理，操作简单。具有无料、断料、堵料自动停机功能。 |
1.Use double Japan servo motors feeding control, Main motor and feeding motor use Taiwan inverter control.Double Italy photocells tracking. 2.AC motor with tension control feeding speed.control by break motor.Max.dia of film roll is 800mm.. Automatic life device by pneumatic control with air shaft. 3.Air blowing out feed system、Auto puncher use air pressure oil hydraulics.Easy operation and disposal. Automatic stop when running out of film and film feeding blocks or bag jam. |
|
技术参数：Technical Parameter |
|
规格 Specification |
型号Model |
|
|
BXZD-800 |
BXZD-1000 |
|
|
制袋宽度Max.Bag Width |
350mm*2 |
420mm*2 |
|
制袋长度Max Bag Length |
300-600mm |
250-600mm |
|
制袋速度Machine speed |
200-300pcs/min |
30-300pcs/min |
|
整机功率Power Required |
10kw |
12kw |
|
设备尺寸Machine size |
6800*1400*1600mm |
7000*1600*1600mm |
|
机器重量Machine N.W |
1800kg |
2000kg |
